Modern refine

Removes gridlines and axis line/tick elements from the non-focused dimension. Also removes ticks on discrete axes.

Usage

refine_modern(x_type = "continuous", y_type = "continuous", focus = NULL, ...)

Arguments

x_type

Character. Type of x-axis: "continuous", "binned", or "discrete".

y_type

Character. Type of y-axis: "continuous", "binned", or "discrete".

focus

Character. The primary axis of interest: "x" or "y". Gridlines and axis elements are removed from the opposite axis. If NULL (default), focus is inferred from x_type and y_type: discrete x with continuous/binned y gives "x", continuous/binned x with discrete y gives "y", otherwise "x".

...

Additional arguments (currently unused).

Value

A ggplot2 theme object

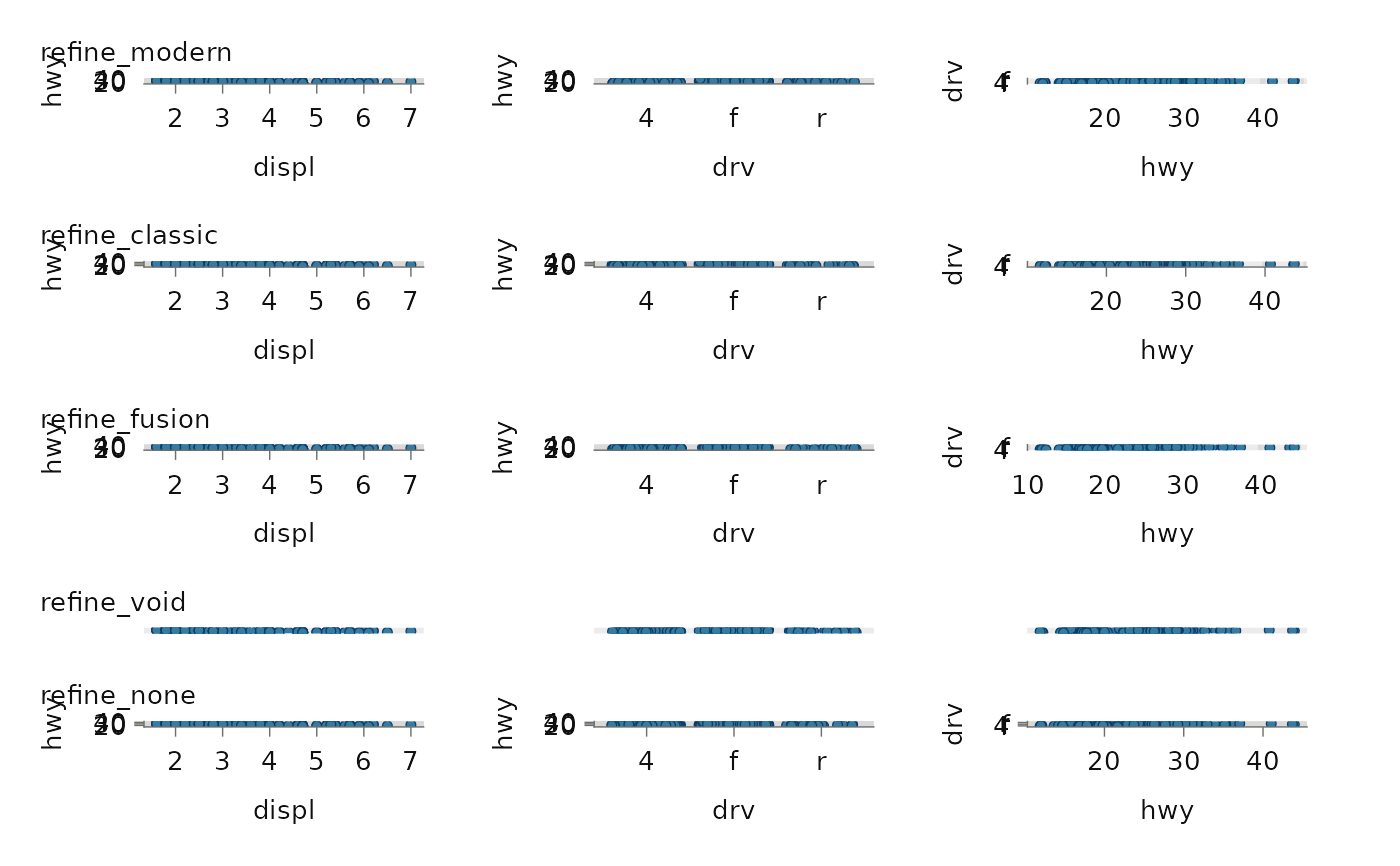

Examples

library(ggplot2)

set_theme(new = theme_grey())

p_continuous <- mpg |>
  ggplot(aes(x = displ, y = hwy)) +
  geom_point(shape = 21, colour = blends::multiply("#357BA2FF"))

p_discrete_x <- mpg |>
  ggplot(aes(x = drv, y = hwy)) +
  geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))

p_discrete_y <- mpg |>
  ggplot(aes(x = hwy, y = drv)) +
  geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))

patchwork::wrap_plots(
  p_continuous + ggrefine::refine_modern() + labs(title = "ggrefine::refine_modern"),
  p_discrete_x + ggrefine::refine_modern(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_modern(y_type = "discrete"),
  p_continuous + ggrefine::refine_classic() + labs(title = "ggrefine::refine_classic"),
  p_discrete_x + ggrefine::refine_classic(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_classic(y_type = "discrete"),
  p_continuous + ggrefine::refine_fusion() + labs(title = "ggrefine::refine_fusion"),
  p_discrete_x + ggrefine::refine_fusion(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_fusion(y_type = "discrete"),
  p_continuous + ggrefine::refine_void() + labs(title = "ggrefine::refine_void"),
  p_discrete_x + ggrefine::refine_void(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_void(y_type = "discrete"),
  p_continuous + ggrefine::refine_none() + labs(title = "ggrefine::refine_none"),
  p_discrete_x + ggrefine::refine_none(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_none(y_type = "discrete"),
  ncol = 3
)
