Greyer theme

A complete theme with a grey panel background on a white plot background. The panel grid colour is derived automatically by blending panel_background_fill with itself using blends::multiply(), producing a subtly darker tone that stays harmonious with the panel colour.

Usage

theme_grey(
  ...,
  text_size = 10,
  text_family = "",
  text_colour = flexoki::flexoki$base["black"],
  legend_place = "right",
  legend_axis_line_colour = plot_background_fill,
  legend_axis_line_linewidth = axis_line_linewidth,
  legend_background_fill = plot_background_fill,
  legend_key_fill = plot_background_fill,
  legend_ticks_colour = legend_axis_line_colour,
  legend_ticks_linewidth = legend_axis_line_linewidth,
  legend_ticks_length = grid::unit(c(2.75, 0), "pt"),
  axis_line_colour = flexoki::flexoki$base["base600"],
  axis_line_linewidth = 0.25,
  axis_ticks_colour = axis_line_colour,
  axis_ticks_linewidth = axis_line_linewidth,
  axis_ticks_length = grid::unit(3.66, "pt"),
  panel_background_fill = "grey92",
  panel_grid_colour = blends::multiply(panel_background_fill),
  panel_grid_linetype = 1,
  panel_grid_linewidth = 1,
  panel_grid_minor_linetype = 1,
  panel_grid_minor_linewidth = 0.5,
  plot_background_fill = "white",
  geom_fill = "#357BA2FF",
  geom_colour = geom_fill,
  palette_fill_discrete = jumble::jumble,
  palette_colour_discrete = palette_fill_discrete,
  palette_fill_continuous = viridis::turbo(n = 256),
  palette_colour_continuous = palette_fill_continuous,
  panel_widths = NULL,
  panel_heights = NULL
)

Arguments

...

Require named arguments (and support trailing commas).

text_size

The base size of the text theme element. Defaults to 10.

text_family

The base family of the text theme element. Defaults to "".

text_colour

The base colour of the text theme element.

legend_place

The place of the legend. Either "right", "top" or "bottom".

legend_axis_line_colour

The colour of the legend.axis.line theme element.

legend_axis_line_linewidth

The linewidth of the legend.axis.line theme element.

legend_background_fill

The fill (and colour) of the legend.background theme element.

legend_key_fill

The fill (and colour) of the legend.key theme element.

legend_ticks_colour

The colour of the legend.ticks theme element.

legend_ticks_linewidth

The linewidth of the legend.ticks theme element.

legend_ticks_length

The legend.ticks.length theme element.

axis_line_colour

The colour of the axis.line theme element.

axis_line_linewidth

The linewidth of the axis.line theme element.

axis_ticks_colour

The colour of the axis.ticks theme element.

axis_ticks_linewidth

The linewidth of the axis.ticks theme element.

axis_ticks_length

The length of the axis.ticks.length theme element.

panel_background_fill

The fill (and colour) of the panel.background theme element.

panel_grid_colour

The colour of the panel.grid theme element.

panel_grid_linetype

The linetype of the panel.grid.major theme element.

panel_grid_linewidth

The linewidth of the panel.grid.major theme element.

panel_grid_minor_linetype

The linetype of the panel.grid.minor theme element.

panel_grid_minor_linewidth

The linewidth of the panel.grid.minor theme element.

plot_background_fill

The fill (and colour) of the plot.background theme element.

geom_fill

The default fill colour of geom elements.

geom_colour

The default border colour of geom elements. Defaults to geom_fill.

palette_fill_discrete

The default discrete fill palette. A function or vector of colours.

palette_colour_discrete

The default discrete colour palette. Defaults to palette_fill_discrete.

palette_fill_continuous

The default continuous fill palette. A vector of colours.

palette_colour_continuous

The default continuous colour palette. Defaults to palette_fill_continuous.

panel_widths

The panel.widths theme element. A unit or unit vector setting the width of individual panels, or a single unit for the total panel area width. Overrides aspect ratio set by the theme, coord, or facets. Defaults to NULL.

panel_heights

The panel.heights theme element. A unit or unit vector setting the height of individual panels, or a single unit for the total panel area height. Overrides aspect ratio set by the theme, coord, or facets. Defaults to NULL.

Value

A ggplot theme.

Examples

library(ggplot2)

p_base_light <- mpg |>
  ggplot(aes(x = hwy)) +
  geom_histogram(
    stat = "bin", shape = 21,
    colour = blends::multiply("#357BA2FF")
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.05)))
#> Warning: Ignoring unknown parameters: `shape`

p_base_dark <- mpg |>
  ggplot(aes(x = hwy)) +
  geom_histogram(
    stat = "bin", shape = 21,
    colour = blends::screen("#357BA2FF")
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.05)))
#> Warning: Ignoring unknown parameters: `shape`

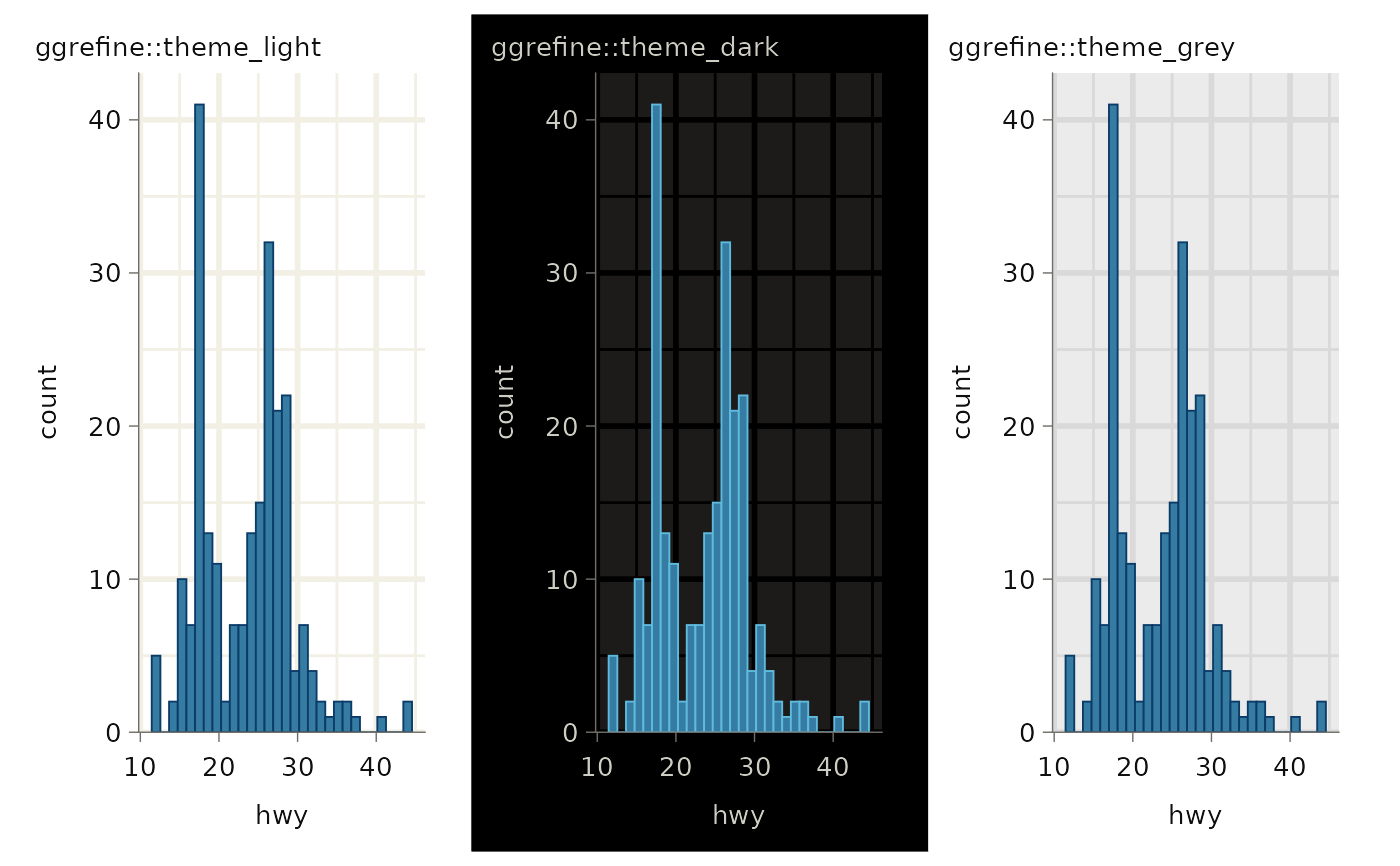

p_light  <- p_base_light + ggrefine::theme_light() + labs(title = "ggrefine::theme_light")
p_dark  <- p_base_dark  + ggrefine::theme_dark() + labs(title = "ggrefine::theme_dark")
p_grey <- p_base_light + ggrefine::theme_grey() + labs(title = "ggrefine::theme_grey")

patchwork::wrap_plots(
  p_light,
  p_dark,
  p_grey
)
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
