Annotate a shaded panel region

Draws filled rectangles over the panel with colour defaults taken from the set theme. Defaults to a subtle overlay across the full panel, with the fill automatically adapting to light or dark panel backgrounds. Should be placed before geom layers.

Usage

panel_shade(
  ...,
  xmin = -Inf,
  xmax = Inf,
  ymin = -Inf,
  ymax = Inf,
  fill = "#878580",
  alpha = 0.25,
  colour = "transparent",
  linewidth = NULL,
  linetype = NULL,
  layout = NULL
)

Arguments

...

Not used. Allows trailing commas and named-argument style calls.

xmin, xmax

Left and right edges of the rectangle in data coordinates. Defaults to -Inf and Inf. Use I() for normalised coordinates (0-1). May be a vector for multiple rectangles.

ymin, ymax

Bottom and top edges of the rectangle in data coordinates. Defaults to -Inf and Inf. Use I() for normalised coordinates (0-1). May be a vector for multiple rectangles.

fill

Fill colour. Defaults to a neutral grey. May be a vector the same length as the bounds to style each rectangle individually.

alpha

Opacity of the rectangle. Defaults to 0.25. May be a vector.

colour

Border colour. Defaults to "transparent". May be a vector.

linewidth

Inherits from panel.border in the set theme. Supports rel(). May be a vector.

linetype

Border linetype. Defaults to 1. May be a vector.

layout

Controls which panels the annotation appears in. NULL (default) repeats in all panels. An integer targets a specific panel. "fixed" repeats in all panels ignoring faceting variables. See ggplot2::layer() for full details.

Value

A list containing annotation layers.

Examples

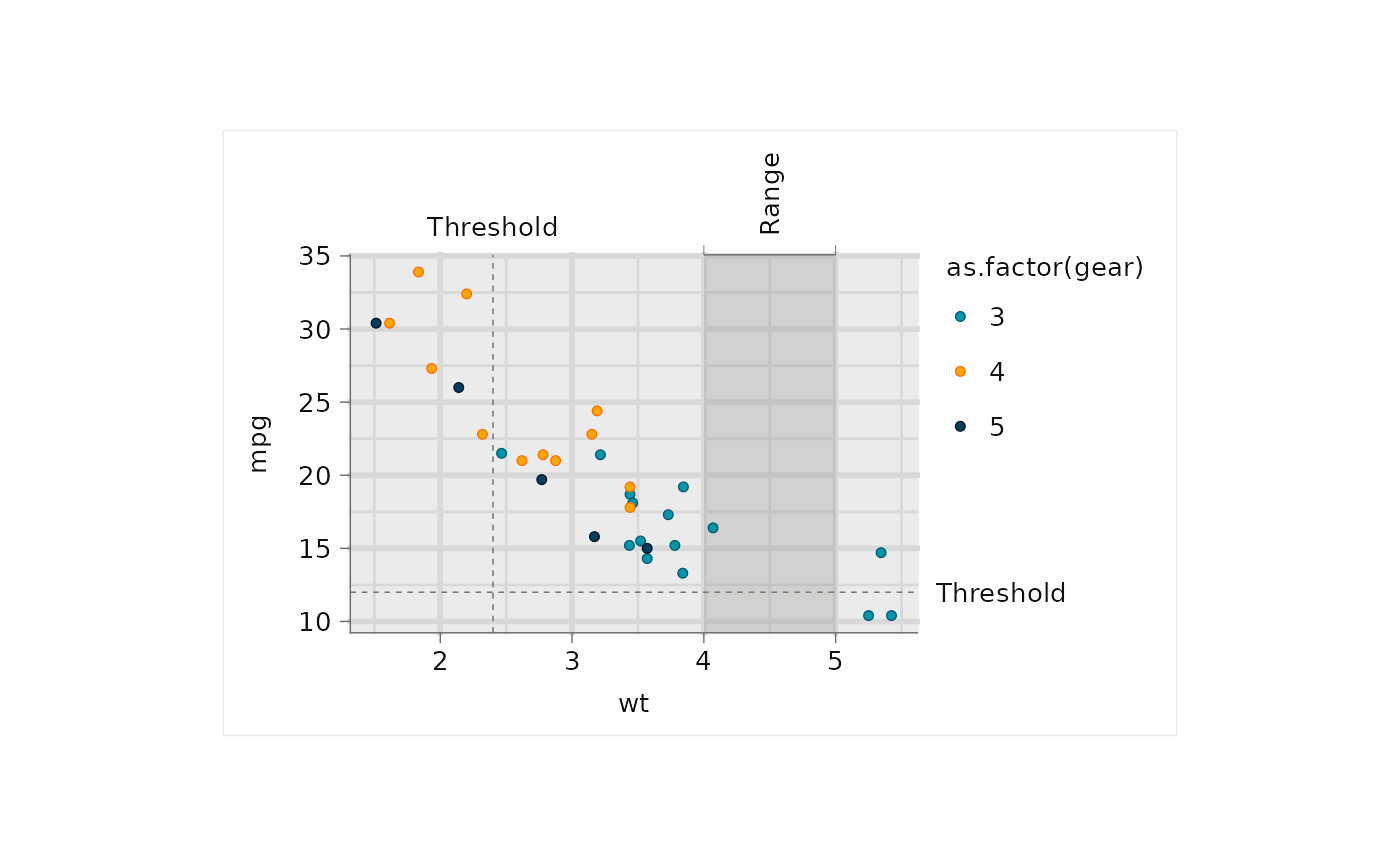

library(ggplot2)
library(dplyr)

set_theme(
  ggrefine::theme_grey(
    panel_heights = rep(unit(50, "mm"), 100),
    panel_widths = rep(unit(75, "mm"), 100),
  )
)

mtcars |>
  ggplot(aes(x = wt, y = mpg, colour = as.factor(gear), fill = as.factor(gear))) +
  scale_colour_discrete(palette = blends::multiply(get_theme()$palette.colour.discrete)) +
  #clip = "off" is required for axis_text, axis_ticks and axis_bracket
  coord_cartesian(clip = "off") +
  #reference lines and shade
  ggscribe::reference_line(xintercept = 2.4) +
  ggscribe::reference_line(yintercept = 12)  +
  ggscribe::panel_shade(
    xmin = 4,
    xmax = 5,
  ) +
  #top axis
  scale_x_continuous(
    sec.axis = ggscribe::sec_axis_text(
      breaks = c(mean(c(4, 5))),
      labels = c("Range"),
      guide = ggscribe::guide_sec_axis_text(
        angle = 90,
      )
    )
  ) +
  ggscribe::axis_bracket(
    position = "top",
    breaks = c(4, 5),
  ) +
  ggscribe::axis_text(
    position = "top",
    breaks = c(2.4),
    labels = c("Threshold"),
  ) +
  #right axis
  ggscribe::axis_text(
    position = "right",
    breaks = 12,
    labels = "Threshold",
  ) +
  #geom
  geom_point() +
  #annotations fit plot
  theme(plot.background = element_rect(colour = "grey92"))
#> Error in ggscribe::axis_bracket(position = "top", breaks = c(4, 5), ): unused argument (position = "top")
