Annotate axis text

Source: R/axis-text.R
axis_text.Rd

Draws text labels at specified break positions along an axis, with style defaults taken from the axis.text element of the set theme. Requires coord_cartesian(clip = "off").

Usage

axis_text(
  ...,
  position = NULL,
  xintercept = NULL,
  yintercept = NULL,
  breaks,
  labels = NULL,
  colour = NULL,
  size = NULL,
  family = NULL,
  hjust = NULL,
  vjust = NULL,
  angle = 0,
  length = ggplot2::rel(1)
)

Arguments

...

Not used. Forces named arguments.

position

One of "top", "bottom", "left", or "right". Inferred from xintercept or yintercept if not provided.

xintercept

For "left"/"right" axes: float the axis to this x position in data coordinates instead of the panel edge.

yintercept

For "top"/"bottom" axes: float the axis to this y position in data coordinates instead of the panel edge.

breaks

A numeric vector of break positions.

labels

One of:

  • NULL (default) to use break values as labels

  • A character vector the same length as breaks

  • A function taking break values and returning labels

colour

Inherits from axis.text in the set theme.

size

Inherits from axis.text in the set theme.

family

Inherits from axis.text in the set theme.

hjust, vjust

Justification. Auto-calculated from position if NULL.

angle

Text rotation angle. Defaults to 0.

length

Offset from the axis edge including tick length and margin. Supports rel(). Negative values place labels inside the panel. Defaults to rel(1) (theme tick length + text margin).

Value

A list of ggplot2 annotation layers.

See also

axis_line(), axis_ticks(), axis_bracket(), reference_line(), panel_shade(), sec_axis_text()

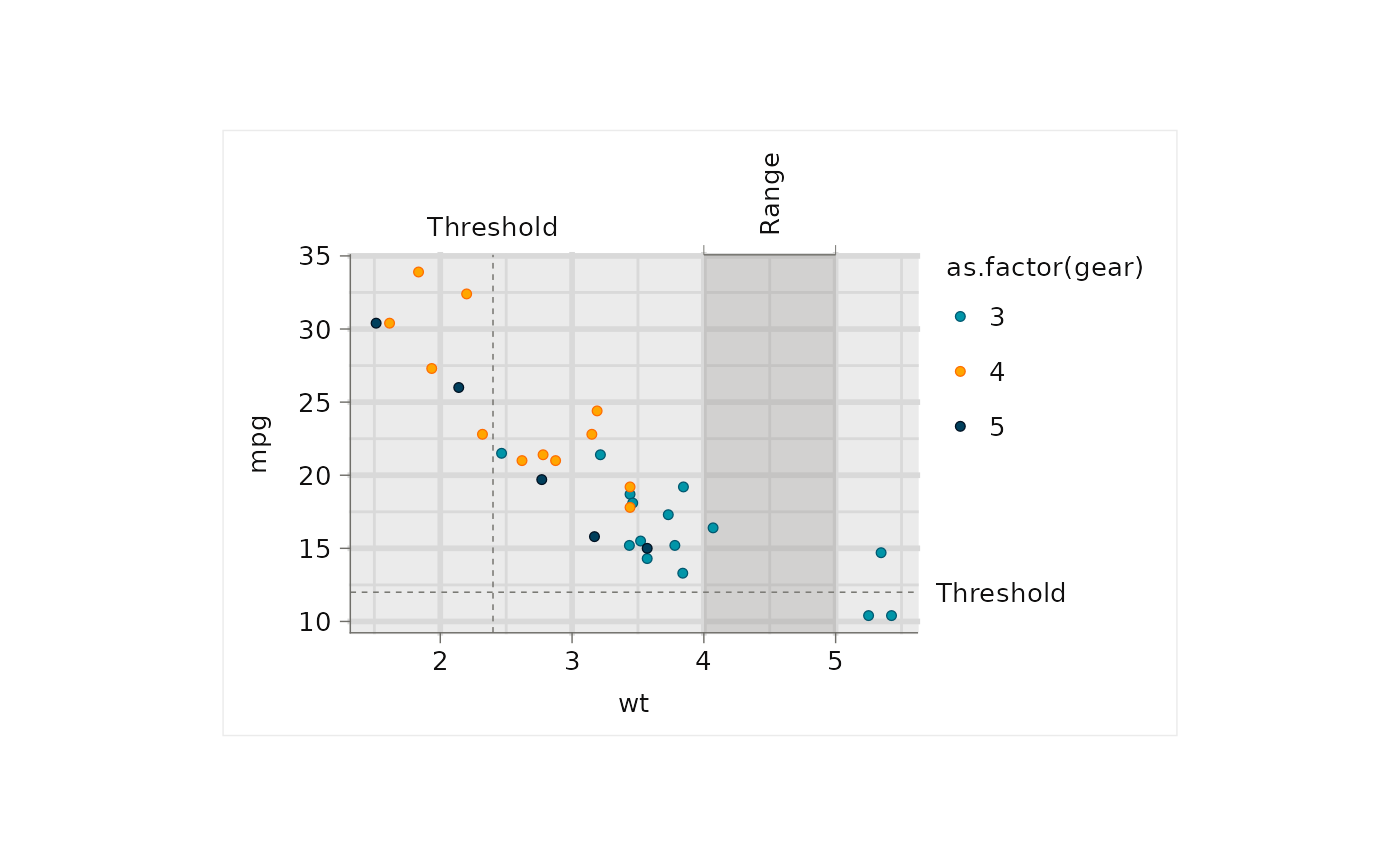

Examples

library(ggplot2)
library(dplyr)

set_theme(
  ggrefine::theme_grey(
    panel_heights = rep(unit(50, "mm"), 100),
    panel_widths = rep(unit(75, "mm"), 100),
  )
)

mtcars |>
  ggplot(aes(x = wt, y = mpg, colour = as.factor(gear), fill = as.factor(gear))) +
  scale_colour_discrete(palette = blends::multiply(get_theme()$palette.colour.discrete)) +
  #clip = "off" is required for axis_text, axis_ticks and axis_bracket
  coord_cartesian(clip = "off") +
  #reference lines and shade
  ggscribe::reference_line(xintercept = 2.4) +
  ggscribe::reference_line(yintercept = 12)  +
  ggscribe::panel_shade(
    xmin = 4,
    xmax = 5,
  ) +
  #top axis
  scale_x_continuous(
    sec.axis = ggscribe::sec_axis_text(
      breaks = c(mean(c(4, 5))),
      labels = c("Range"),
      guide = ggscribe::guide_sec_axis_text(
        angle = 90,
      )
    )
  ) +
  ggscribe::axis_bracket(
    position = "top",
    breaks = c(4, 5),
  ) +
  ggscribe::axis_text(
    position = "top",
    breaks = c(2.4),
    labels = c("Threshold"),
  ) +
  #right axis
  ggscribe::axis_text(
    position = "right",
    breaks = 12,
    labels = "Threshold",
  ) +
  #'geom
  geom_point() +
  #annotations fit plot
  theme(plot.background = element_rect(colour = "grey92"))
